EAA Chapter 1000 Standardized Work Table Plans

Bob Waldmiller

Originally published June 1992

Building Instructions

BILL OF MATERIALS (to build 2 tables)
(1) 3/4" x 4' x 8' Sanded Exterior Plywood
(1) 1/2" x 4' x 8' Plywood
(14) 2" x 4" x 8' Premium Studs
(4) 1/4" x 3/4" x 8' Pine Flat Screen Moulding
(80) #10 x 3" Wood Screws
(50) #10 x 2-1/2" Wood Screws
(50) #8 x 1-1/2" Construction Screws
(1) Box of 3d Finishing Nails
(1) 16 oz Elmer's Carpenter's Wood Glue
(See cutting schedule below)

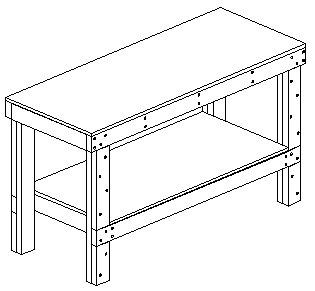

Fully assembled work table
Fully assembled work table

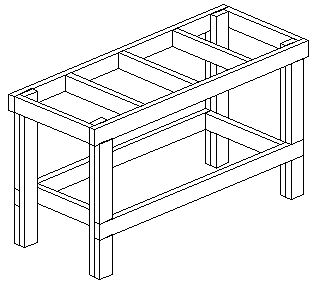

Assembled work table without plywood
Assembled work table shown with the plywood removed for clarity

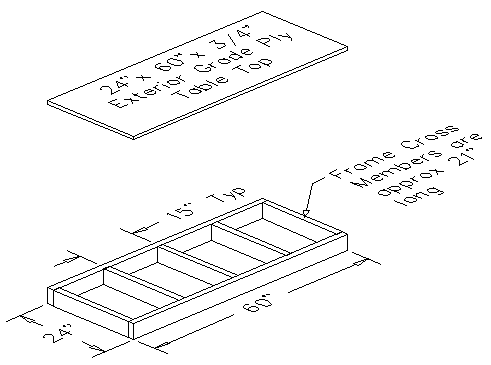

Exploded table top
Exploded table top

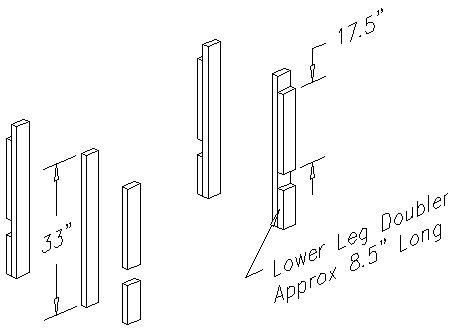

Table legs
Table legs

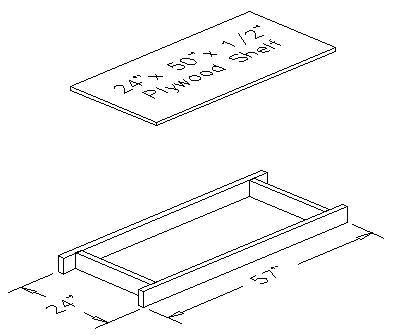

Exploded lower shelf
Exploded lower shelf
2x4 Cutting Schedule
2x4 #
Cut to lengths
1 60" 33"
2 60" 33"
3 60" 33"
4 60" 33"
5 57" 33"
6 57" 33"
7 57" 33"
8 57" 33"
9 17.5" 17.5" 17.5" 17.5" 17.5"
10 17.5" 17.5" 17.5" 21" 21"
11 21" 21" 21" 21" 8.5"*
12 21" 21" 21" 21" 8.5"*
13 21" 21" 21" 21" 8.5"*
14 8.5"* 8.5"* 8.5"* 8.5"* 8.5"*
*Cut to match lower legs
